Machines
5 AXIS MACHINE
Table Size ( 450 / 700 / 1000 / 1100 mm) Column type / Gantry type
MULTITASK MACHINE
MTC ( 500i / 630i ), Between center (1500 / 2000 / 3000 / 4500 / 6000 mm),
(Tailstock / Sub Spindle ), ( Turning, Milling,Gear cutting )
(Tailstock / Sub Spindle ), ( Turning, Milling,Gear cutting )
VERTICAL MILLING MACHINE
Table size ( 500 ~ 2000 mm), Spindle type (BT 40 / 50 / HSK ), ( ATC / APC )
CNC HORIZONTAL LATHE MACHINE
Chuck Size ( 6” ~ 32” ), Bed Type ( Slant / flat ), Between center ( 136 ~ 6000 mm ),
( 2 Axis / turn mill / Y axis / Sub spindle / twin turret / twin spindle with twin turret )
( 2 Axis / turn mill / Y axis / Sub spindle / twin turret / twin spindle with twin turret )
OIL COUNTRY LATHE
Bore size (6” ~ 24”), Machine Type ( NC / CNC / Conventional),
Between Center (1500 ~ 12000 mm), ( Grinding attachment,
thread repair function, Hydraulic copy attachment etc..)
Between Center (1500 ~ 12000 mm), ( Grinding attachment,
thread repair function, Hydraulic copy attachment etc..)

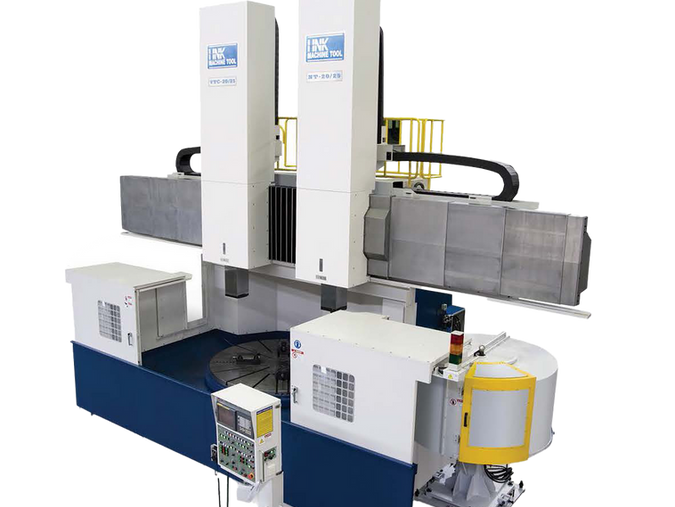

VERTICAL TURNING LATHE
High Speed / Heavy duty / large vertical lathe / Twin Series / APC Series,
Chuck size ( 305 ~ 10,000 mm ), Height ( 450 ~ 6000 mm )
Chuck size ( 305 ~ 10,000 mm ), Height ( 450 ~ 6000 mm )
HORIZONTAL BORING MACHINE
HBM type ( Table / Floor / Duplex ), Spindle Range (110 ~ 150 mm),
X axis Travel ( 1,600 ~ 30,000 mm ) , ( ATC / APC ), Table load Range ( 3000 ~ 150,000 Kg )
X axis Travel ( 1,600 ~ 30,000 mm ) , ( ATC / APC ), Table load Range ( 3000 ~ 150,000 Kg )
HORIZONTAL MACHINING CENTRE
High Speed / Heavy duty), Table Range ( 400 ~ 1250 mm) , Spindle speed ( 6000 ~ 12,000 rpm ),
Spindle type ( BT40 / 50 , HSK 63 / 100 )
Spindle type ( BT40 / 50 , HSK 63 / 100 )
DOUBLE COLUMN MACHINING CENTER
( Bridge type / Gantry type / Moving column ), ( 3 Axis / 4 Axis /4+1 Axis / 5 Axis ),
X travel (1,200 ~ 6,200 ), Spindle ( BT40 / 50,HSK 63/100)
X travel (1,200 ~ 6,200 ), Spindle ( BT40 / 50,HSK 63/100)

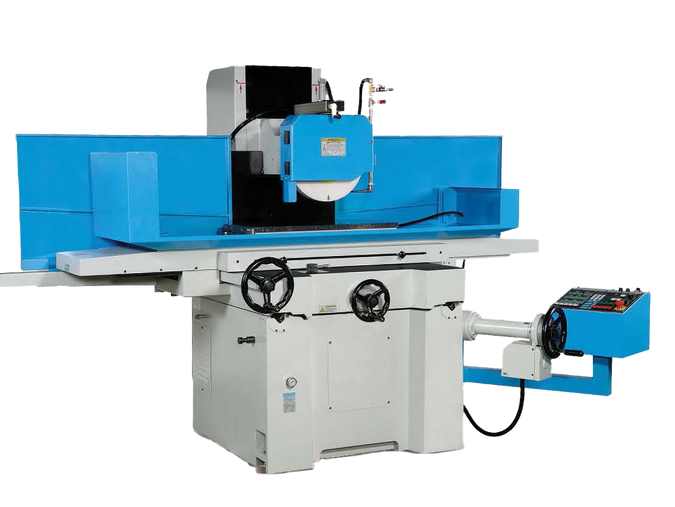

GRINDING MACHINE
( Surface / Cylindrical ), ( Manual / NC / CNC ), Machine Type (Saddle / column
type / cantilever type / double column )
type / cantilever type / double column )
EDM MACHINE
EDM ( wire / Spark / Drill ), Machine type ( CNC / NC )
DIE CAST MACHINE
Aluminum die cast ( Cold / Hot Chamber ), Capacity Range ( 1,500 ~ 8,500 KN )

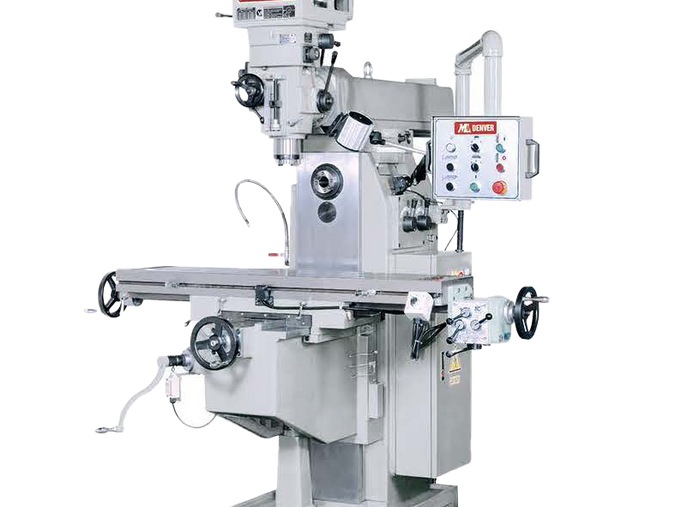

CONVENTIONAL MACHINES
( Flat bed lathe / Knee type milling machine / Universal milling / Bandsaw / Radial drill etc.. )
LASER MACHINE
Power ( 500 ~ 12,000 watts ), Table size ( 1,500 ~ 12,000
mm ), ( single pallet / Dual pallet / Pipe cutting / 3 Axis / 5 Axis )
mm ), ( single pallet / Dual pallet / Pipe cutting / 3 Axis / 5 Axis )

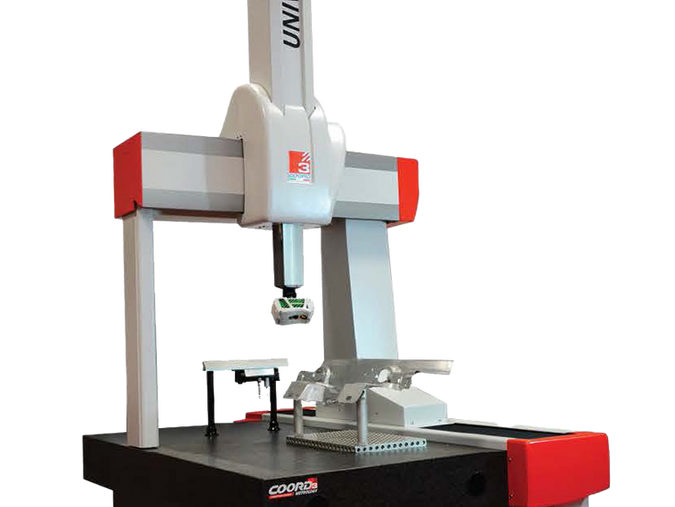

CMM MACHINE
Machine Type( Portable / Horizontal arm /
Bridge / Gantry )
Bridge / Gantry )
